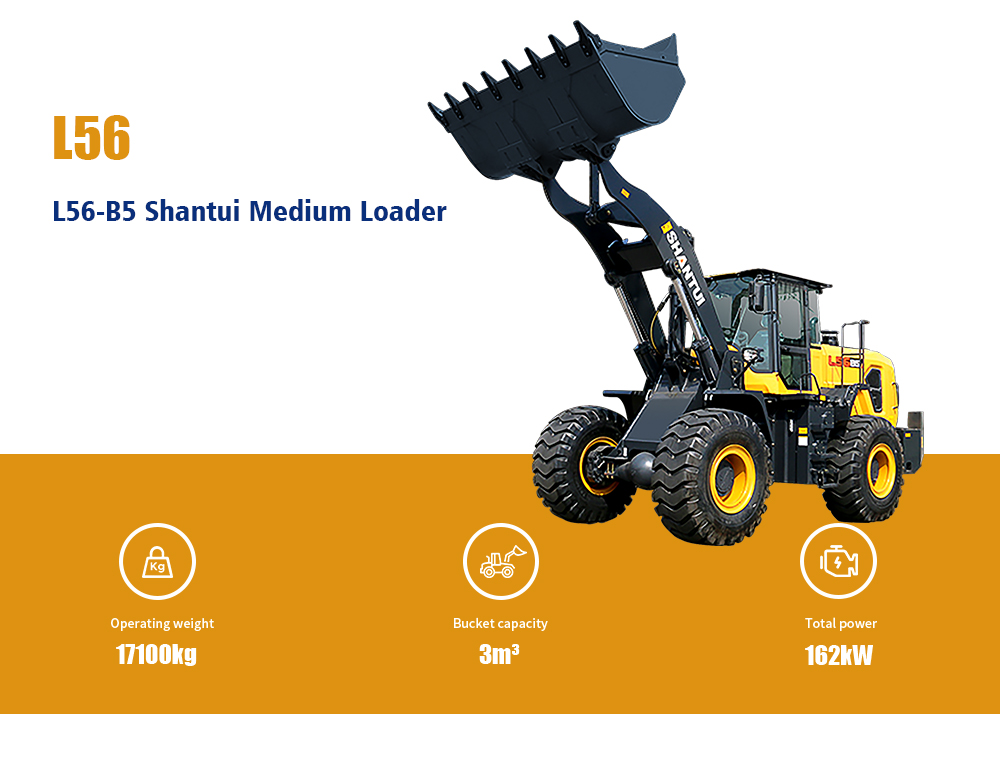

L56-B5 Shantui Medium Loader
Product Advantage
configuration Selling Point
The WD10 engine customized by Weichai, an affiliated enterprise within the group, is optimally matched with the electronic control transmission self-developed by Shantui. This combination forms an energy-saving and efficient golden core powertrain. During operation, the transmission automatically shifts to a lower gear mode to enhance operational efficiency.
Ease Of Maintenance And Operation Comfort
The integrated cab provides 15% more interior space, ensuring better sealing and noise reduction. The placement of air filters and diesel filters on the same side as the engine, along with externally located brake calipers on the drive axle, contributes to easier maintenance.
Adaptability To Diverse Working Conditions
The axle box is reinforced and front and rear frames are strengthened to ensure high load-bearing capacity, making it well-suited for a wide range of operating environments such as earthmoving, coal, ore, and aggregated rocks.
Specifications
| Parameter | L56-B5 |
| Total power(kw) | 162 |
| Operating weight(kg) | 17100 |
| Bucket capacity(m³) | 3 |
| External dimensions(mm) | 8220×3066×3450 |
| Rated loading capacity(t) | 5 |
| Maximum dumping height(mm) | 3050 |
| Dumping distance(mm) | 1110 |
| Subtotal(s) | 9.8 |
| Wheelbase(mm) | 3250 |
| Maximum speed(km/h) | 38 |
| Emissions (Indicated as per international standards) | Eu stageⅡ |
