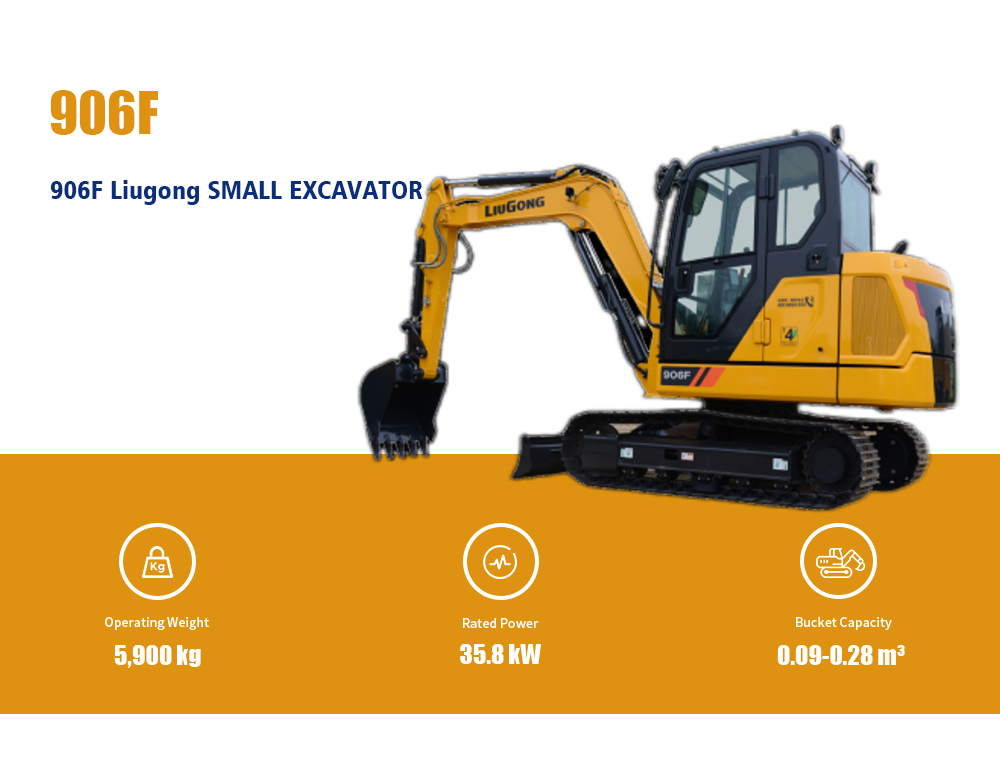

906F Liugong SMALL EXCAVATOR
Product Advantage
Equipped with Yanmar engine that meets China IV emissions, it has strong power, and the industry 's same tonnage industry provides large power output and flow, on the basis of ensuring high efficiency, it also has higher reliability and durability
The new main pump displacement is supplied to the system on demand, the standby is automatically reduced, and the work is provided on demand, reducing energy consumption and energy saving
Air filter, oil filter, diesel filter, antifreeze, lubrication point and other main maintenance points are centralized layout, realizing convenient one-stop maintenance and inspection.
Specifications and designs are subject to change without notice.
Specifications
| Operating weight | 5900 kg |
| Engine power | 35.8 kW (48.7 hp) @ 2000 rpm |
| Std. Bucket capacity | 0.21 m³ |
| Travel speed(High) | 4.1 km/h |
| Travel speed(Low) | 2.5 km/h |
| Maximum swing speed | 10.3 rpm |
| Arm breakout force | 31 kN |
| Bucket breakout force | 41 kN |
| Shipping length | 5900 mm |
| Shipping width | 1960 mm |
| Shipping height | 2580 mm |
| Track shoe width (std) | 400 mm |
| Boom | 3000 mm |
| Arm | 1600 mm |
| Digging reach | 6220 mm |
| Digging reach on ground | 6065 mm |
| Digging depth | 3855 mm |
| Vertical wall digging depth | 2940 mm |
| Cutting height | 5675 mm |
| Dumping height | 3955 mm |
| Minimum front swing radius | 2430 mm |
| Dozer-up | 360 mm |
| Dozer-down | 405 mm |
| Model | Yanmar 4TNV94L-ZCWLY(C) |
| Emission | CN Ⅳ |
| System maximum flow | 149.6 L/min (40 gal/ min) |
| System pressure | 25 MPa |
